- DC power possible from 12 to 60Vdc
- Either power from 12V vehicle or transformer rectifier output
- AC supply from 100 to 240Vac.
- Robust ,ergonomic case with large handle for easy transportation

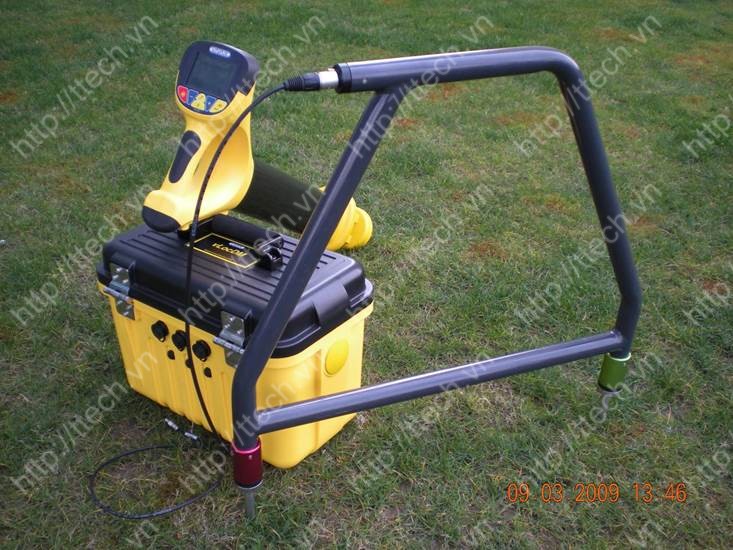

vLockDM Transmitter
- 100ma to 3A Constant Current Signal mapping current.
- Near DC or Ultra Low Frequency outputs
- Ultra low frequency for faster, more repeatable and consistent results
- Selection of locate frequencies: 64Hz, 98Hz, 128Hz, 512Hz or 640Hz
- Multiple output mode
- LCD providing
- Output current
- Output Voltage
- Mode
- Overheat warning
- Over Voltage warning
- Power Limit
- Colour dot matrix display for clarity and flexibility
- Internal rechargeable batteries with replaceable alkaline, back-up, battery pack
- Robust and shock resistant packaging
- Magnetometer sensors for very low frequency measurements
- External GPS
- Internal or external data logging
vLocDM Receiver
- Conventional single dimensional bar graph
- New two dimensional display
Choice of two receiver displays
- DM Current (This is the low frequency mapping current)
- Locate current
- Depth to centre of pipe
- Distance, as the crow flies, from last reading
At each measurement point the following data is displayed
- Datalogging
- 1000 internal records
- Current profiling
- A-frame ACVG data logging
- Real time on screen graphing
- USB external connector
vLocDM Receiver Data Logging
vLocDM Receiver Display
