Reasons to choose an N4L Power Analyzer
 Widest frequency range |
Highest wideband accuracy |
| Widest voltage measurement range |
Highest direct peak voltage |
| Widest current measurement range |
Highest direct peak current |
| Highest common mode rejection |
Leading variable speed drive solution |
| High speed sampling – no gap between measurement windows |
Unique high speed synchronisation with low duty cycle standby power measurement |
Our Power Analyzer range
| PPA500* / PPA1500 Compact |
PPA2500 and PPA2600 * |

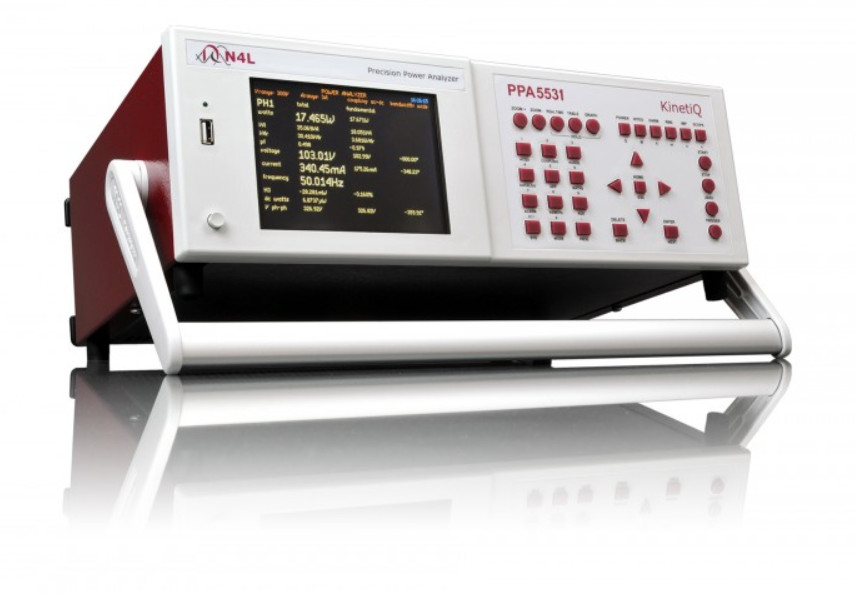

PPA5500 Highest accuracy |
|
|---|---|---|---|
| Accuracy | |||
| Basic V A reading | 0.05% | 0.04% | 0.01% |
| Basic Power reading | 0.1% | 0.05% | 0.03% |
| Number of Phases | |||
| Internal | 1–3 | 1–3 | 1–3 |
| Master Slave mode | 4–6 | 4–6 | |
| Software Support | 1-9 | 1-9 | 1-9 |
| Voltage input | |||
| Direct voltage | 2500Vpk | 3000Vpk | 3000Vpk |
| Ranges | 8 | 8 | 9 |
| Direct current input options | |||
| 10Arms | |
|
|
| 20Arms | |
||
| 30Arms | |
|
|
| 50Arms | * |
|
|
| Ranges | 8 | 8 | 9 |
| Bandwidth | |||
| 10A, 20A and 30A options | DC to 1MHz *DC to 500kHz | DC to 2MHz | DC to 2MHz |
| 50A current option | DC to 1MHz * | DC to 1MHz | |
| Mechanical Features | |||
| Display | Colour Graphic *Numeric Only |
BW Graphic | Colour Graphic |
| USB memory port | |
|
|
| Real time clock | |
|
|
| 19″ Rack mounting option | * |
|
|
| General features | |||
| Speed – Harmonic computations per second | 300 | 300 | 1,800 |
| Non volatile internal memory | 192kB | 192kB | 1GB |
| USB port for memory drive | |
|
|
| USB drive supplied standard | 2GB | ||
| Non-volatile real time clock | |
|
|
| Internal datalog functions | 4 | 4 | 16 (4×4) |
| Torque and speed inputs | |
|
|
